BLEQ35-6

Klik voor groot

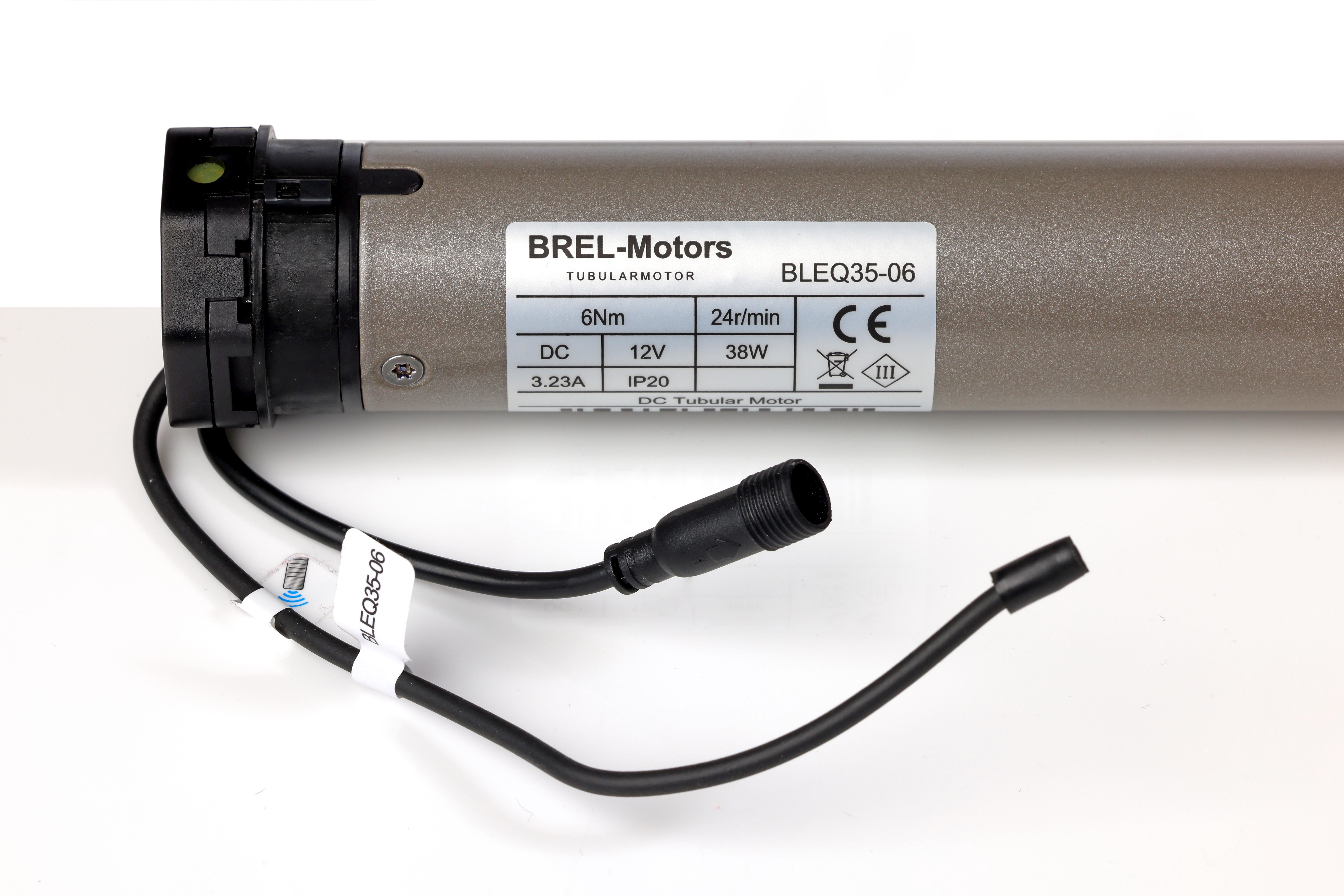

BLEQ35-6

Electronic radio motor, electronic upper and lower adjustment and intermediate position. With integrated, rechargeable, Li-Ion batteries. Torque 6 Nm, 35 mm diameter. Commonly used for roller blinds, (wooden) venetian blinds, screens, and shutters, possibly in combination with a solar panel. Without further wiring.

Electronic end positions
Integrated Li-ion battery (3200 mAh) and DIN plug
Rechargeable
Built-in radio receiver
Preferred position
Automatic shutdown
Low energy consumption
Adjustable speed
Bi-directional

BLEQ35-6 is being discontinued and replaced by the BLEQ35-6 USB-C!

Advantages

Electronic final positions

Integrated Li-ion battery (3200 mAh) and DIN plug

Rechargeable

Built-in radio receiver

Preferred position

Automatic shutdown

Low energy consumption

Adjustable speed

Bi-directional

Specifications

General

Tension (V)12V

Torque (Nm)6

Speed (rpm)24

Diameter (mm)35

Motor length (mm)694

Cable length (m)0,15

Power (W)38

Current (A)3,23

Tips

No tips available.

Downloads and instructions

Downloads

bleq-35-06-english
