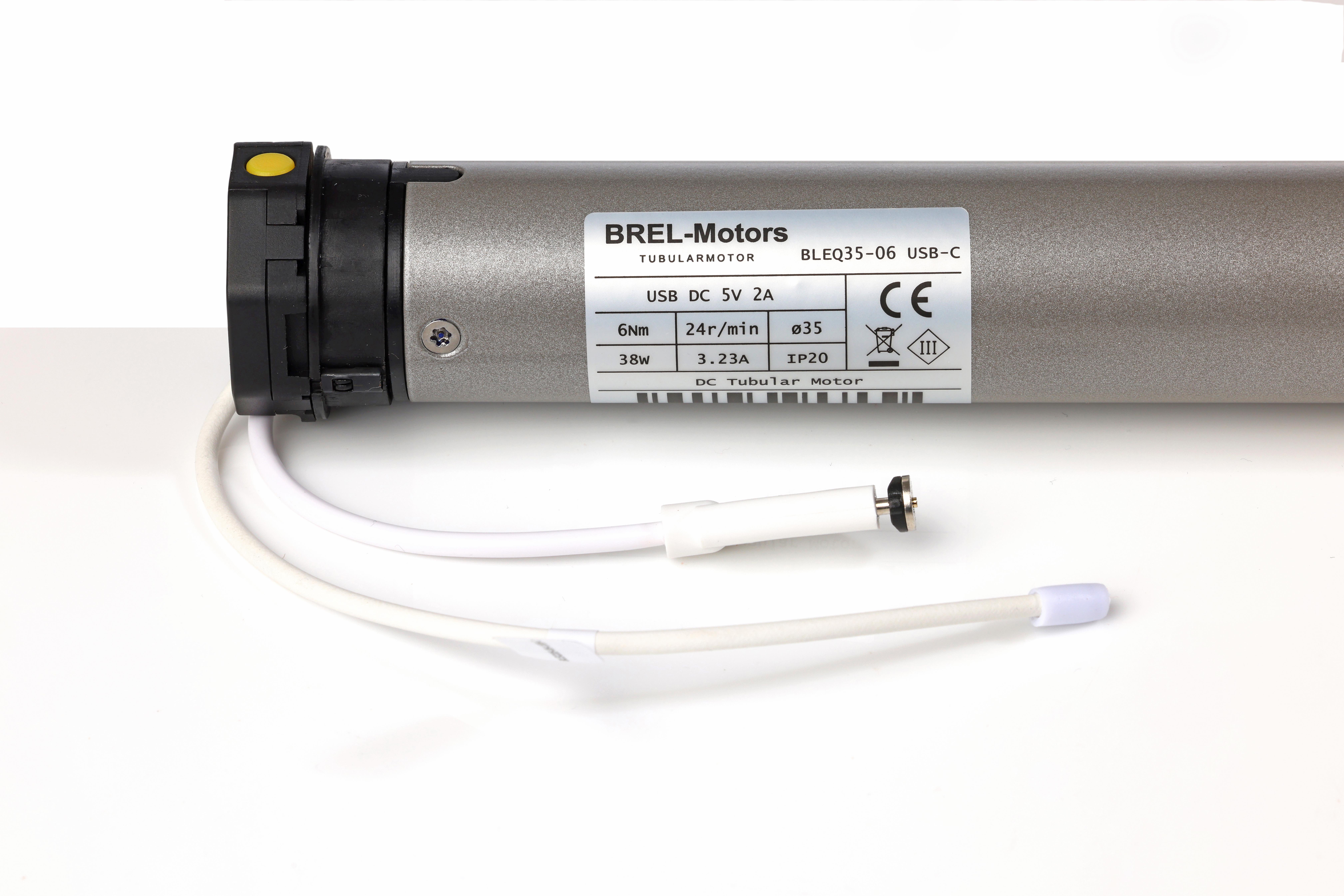

BLEQ35-6/24 USB-C

Klik voor groot

BLEQ35-6/24 USB-C

Electronic radio motor, electronic upper and lower adjustment, and intermediate position. Equipped with integrated, rechargeable Li-Ion batteries. Torque 6 Nm, 35 mm diameter. Commonly used for roller blinds, (wooden) venetian blinds, screens, and shutters, possibly in combination with a solar panel. No additional wiring required.

Electronic end positions
Integrated Li-ion battery (3200 mAh) and USB-C
Rechargeable
Built-in radio receiver
Preferred position
Automatic shutdown
Low energy consumption
Adjustable speed
Bi-directional

Advantages

Electronic end positions

Integrated Li-ion battery (3200 mAh) and USB-C

Rechargeable

Built-in radio receiver

Preferred position

Automatic shutdown

Low energy consumption

Adjustable speed

Bi-directional

Specifications

General

Tension (V)12V

Torque (Nm)6

Speed (rpm)24

Diameter (mm)35

Motor length (mm)694

Cable length (m)0,15

Power (W)38

Current (A)3,23
